MONTZ- Cross Flow Tray KSG (FRI tested)

A high performance tray without moving parts

The MONTZ-Cross Flow Tray Type KSG is designed as a mass transfer tray with performance characteristics of a valve tray but without moving parts. This design makes is particularly suited for retrofits of existing columns and for multi-purpose distillations.

Properties:

Due to its particular design and contrary to general practice, the MONTZ high performance tray prevents the negative impact of opposite direction gas streams.
  • Neighboring exit cross-sections are staggered by 90°. As a result, the entrainment rate of the tray is limited. The design of the gas channels with rounded flow edges further promotes low pressure drops of the tray.

Applications:

  • This tray type is used for distillations and for scrubbing.
  • Due to its wide operating range, it is particularly suited for the upgrade of existing columns to increase throughput.
  • Well proven for multi-purpose distillations.

Materials:

  • Stainless steels: 1.4301, 1.4404, 1.4571, 1.4000, 1.4435, 1.4539 etc.
  • Hastelloy C4, Aluminium, Copper, Titanium, Monel, Tantallum etc.

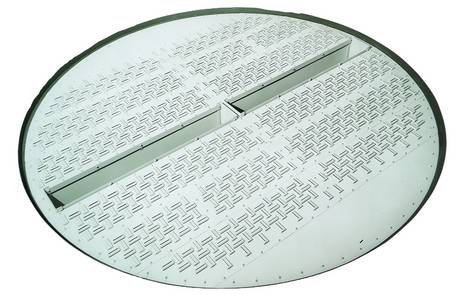

A circular object with a pattern on it is sitting on a table.
A drawing of a maze with arrows pointing in different directions.
A drawing of a couch with blue lines coming out of it.

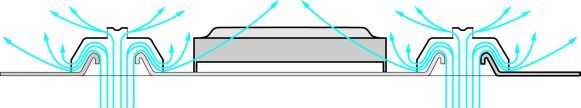

Flow of a MONTZ cross stream tray Type KSG and cross-section of a two-stage KSG tray
